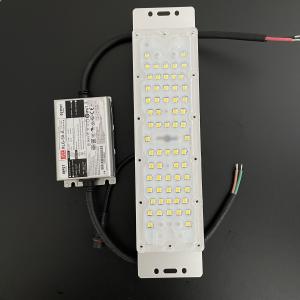

Outdoor Waterproof IP65 LED Lighting Driver 80X150 Degree Lens Angle

Name: Outdoor Waterproof IP65 LED Lighting Driver 80X150 Degree Lens Angle
Brand: mankun
Price: 1 USD

Buy cheap Outdoor Waterproof IP65 LED Lighting Driver 80X150 Degree Lens Angle product

Brand Name : mankun

Model Number : AL17905

Certification : CE,UL,ROSH

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 5000000 Piece/Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : 10pcs per Blister tray, 200pcs per carton, 330*330*170mm, 8KG

Color Temperature(CCT) : 3000K-6500K

Lens Size : 236X70MM

PCB size : 219.1x53.54x1.5mm

Kit : led lens +silicon gasket + pcb welding leds+ heat sink

Heat sink : L300*W70*T40mm

Power : 50W DC 46-52V

Lens Angle : 80X150 degree

LED Light Source : 64pcs smd 3030 leds

Contact Now

Outdoor Waterproof IP65 LED Lighting Driver 80X150 Degree Lens Angle

Ip65 Outdoor Lighting Waterproof Led Driver Module And Led Floodlight Module 50W

Product Description

MODEL NO.:	DK252-64H1-3030
KITS :	LED LENS, LED BOARD, HEAT SINK, SCREWS
LENS SIZE:	236x70mm
LENS ANGLE:	30/60/90 degree for flood light
PCB SIZE:	219.1x53.54x1.5mm
PCB CIRCUIT:	8 series 8 parallel
MATCH LEDS:	64pcs smd 3030 leds, CCT 3000K-6500K for choose
WHOLE LED BOARD INPUT VOLTAGE(DC)	DC 48V
HEAT SINK SIZE:	L300W70T40mm

Test Report: (our heat sink only support maxinum 30W / 50W power)

Model No.		DK252-64H
Power(W)		20	30	40	50
Voltage(Vf/V)		45.4	46.8	48	49
Current(If/mA)		420	660	828	1008
Color Temp Tc(K)		5000	5000	5000	5000
Efficiency (lm/W)	Without lens	173	166	154	146
	with lens	155	149	139	131
Luminous Flux (φv/lm)	without lens	3452	4974	6168	7280
	with lens	3107	4477	5551	6552
Color Index(Ra)		>70	>70	>70	>70
Lens beam angle		6060,12955,13555,14370, 14583,15757,143*48 degree
Wick		24V 5050 leds
Protection level		IP66
Working temperature(℃)		-80
storage temperature(℃)		-95
Server Life(H)		50000

Mean Well AC / DC Enclosed Switching Power Supply

Our AC DC Switching Power Supply Wattage from 15W to 10000W, widely use in industrial automation equipment, scientific equipment, LED lighting, industrial equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifiers, electronic refrigerator, LCD monitors, communications equipment, audio-visual products, security monitoring, computer chassis, digital products category, etc.

Waterproof	Non-Waterproof	DC - DC Type	Controller & Accessory
Dimmable Constant Voltage	Dimmable Constant Voltage	LDH-45, LDH-45DA LDD-300~1500L / LW / LS LDD-300~1000H / HW / HS LDD-1200 / 1500H / HW LDB-300~600L / LW	DAP-04, DAP-04-S01, SPD-20 SDP-001, POB WPD-06, PIR-045 RFP, NCL, IRL
Dimmable Constant Current	Dimmable Constant Current
Non-Dimmable Constant Voltage	Non-Dimmable Constant Voltage
Non-Dimmable Constant Current	Non-Dimmable Constant Current

FAQ

Q1. Can I have a sample order for LED light module?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample need 3-5 days, mass production time needs 10-15 days ,It's according to the order.

Q3. Do you have any MOQ limit for LED light module order?
A: Low MOQ, 1pcs for sample available. Bulk order 40pcs Minimum.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship Sample by DHL,FedEx and TNT . It usually takes 3-5 days to arrive. mass products are shipping
by sea or airport. This up to your choice.

Q5. How to proceed an order?
A: Firstly, let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our LED light module.

Product Application display
